24V Lithium Power unit

24V Lithium Power unit

LVPU1

The LVPU (Low Voltage Power unit) is a complete cost effective solution to replace the expensive and unpredictable lead-acid battery usage, the load shed circuit and the voltage regulator on a passenger bus.

The Power Unit containing the Li-Ion cells and a BMS is designed according to the highest security level of the ISO26262 battery related standard.

The LVPU has the same size and footprint of a conventional 8D group battery allowing an easy installation on a bus retrofit or on a new bus by the OEM. It can smartly control the alternator of a diesel bus as well as the DC-DC converter on a hybrid/electric vehicle.

Download the technical sheet

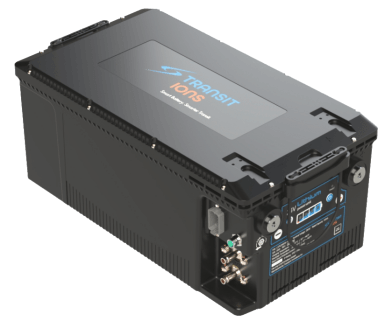

LVPU1 model shown

Highlights

- High density & efficiency power unit (up to 94Ah)
- Intuitive hexadecimal display
- Multiple independant loadshedding stage to keep priority systems actives
- Self regulated temperature system
- Support J1939 protocol
- Meet higher safety standard (ISO26262 - ASIL D rated)
- Fully sealed enclosure

Service Proven

Models & features

Part Number Base

LVPUP
LVPUB

Nominal Output Voltage

25,2V
25,2V

Nominal Capacity

94Ah
60Ah

Maximum Continuous Discharge Current

1C
1C

Peak Current Output (< 10s)

10C
4C

Low Voltage Disconnect

Yes
Yes

Hexadecimal LED Display

Yes
No

Part Number Base

LVPUP
Nominal Output Voltage : 25,2V
Nominal Capacity : 94Ah
Maximum Continuous Discharge Current : 1C
Peak Current Output (< 10s) : 10C
Low Voltage Disconnect : Yes
Hexadecimal LED Display : Yes

Part Number Base

LVPUB
Nominal Output Voltage : 25,2V
Nominal Capacity : 60Ah
Maximum Continuous Discharge Current : 1C
Peak Current Output (< 10s) : 4C
Low Voltage Disconnect : Yes
Hexadecimal LED Display : No

X = Included, O = Optional, F = Factory Configurable
